Diagnostic Service Tool
DT0124

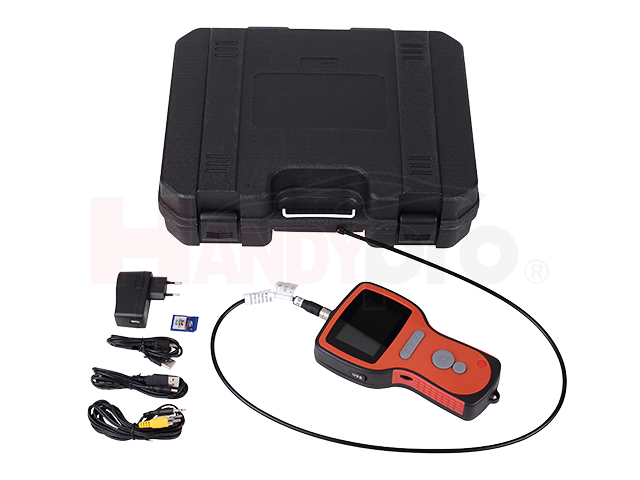

FVS Series Endoscope Set
Specifications
Insert Tube & Light Source:
Image Sensor: CMOS Image Sensor
Resolution(Dynamic Static): 320(H)x 240(V) / 640(H) x 480(V)
Size Tip(Insert Tube) Diameter: 5.5mm / 4.0mm(Optional)
Tube Length: 1 Meter(upto 30 Meter)
Field of View(FOV): 54”/56”
Depth of View(DOV) 1.5cm to 5cm(OD 5.5mm)
Light Source: 4 LED(OD 5.5mm)
Probe Working Temperature: -20∘to 60∘C(OD5.5mm)
Ingress Protection: AVI(640x480)
Display Unit: Power: DC 5V
Display: 3.5”TFT LCD Monitor 320 x 240 Pixel
Interface: USB 1.1/2.1, AC out
Battery: Rechargeable Li-Polymer Battery
Power adapter: 100~240V AC in/ 5.5V DC out
Video Out Format: NTSC&PAL
Recoding Medium: 1GB SD card(upto 8GB, optional)
Compression Format: MPEG4
Still Image Storage Format: JPEG(640x480)
Video Recording Format: ASF(320x240)
Image Sensor: CMOS Image Sensor
Resolution(Dynamic Static): 320(H)x 240(V) / 640(H) x 480(V)
Size Tip(Insert Tube) Diameter: 5.5mm / 4.0mm(Optional)
Tube Length: 1 Meter(upto 30 Meter)
Field of View(FOV): 54”/56”
Depth of View(DOV) 1.5cm to 5cm(OD 5.5mm)
Light Source: 4 LED(OD 5.5mm)
Probe Working Temperature: -20∘to 60∘C(OD5.5mm)
Ingress Protection: AVI(640x480)
Display Unit: Power: DC 5V
Display: 3.5”TFT LCD Monitor 320 x 240 Pixel
Interface: USB 1.1/2.1, AC out
Battery: Rechargeable Li-Polymer Battery
Power adapter: 100~240V AC in/ 5.5V DC out
Video Out Format: NTSC&PAL
Recoding Medium: 1GB SD card(upto 8GB, optional)
Compression Format: MPEG4
Still Image Storage Format: JPEG(640x480)
Video Recording Format: ASF(320x240)
Contents:
FVS-800 Main Unit with OD:5.5mm, L: 1M
FVS-800 Main Unit with OD:5.5mm, L: 1M

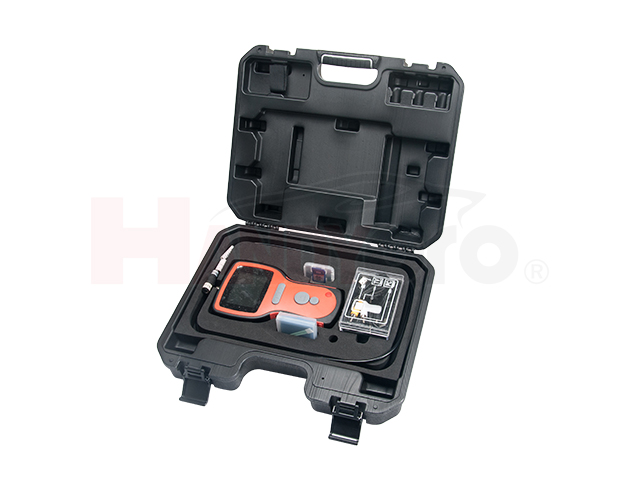

Packing: Blow Mold Case
1/SET/CTN/4.3/5.3/KGS/0.9’
1/SET/CTN/4.3/5.3/KGS/0.9’
