Diagnostic Service Tool

DT0125
DT0125
DT0125_1
DT0125_2
DT0125_3
DT0125

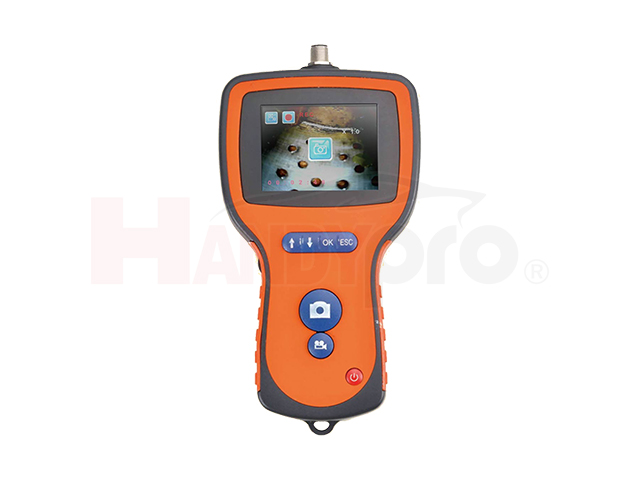

FVS Series Endoscope Set

Specifications

Feature: Insert Tube& Light Source:

Image Sensor: CMOS Image Sensor

Resolution(Dynamic Static):320(H)x 240(V)/640(H) x 480(V)

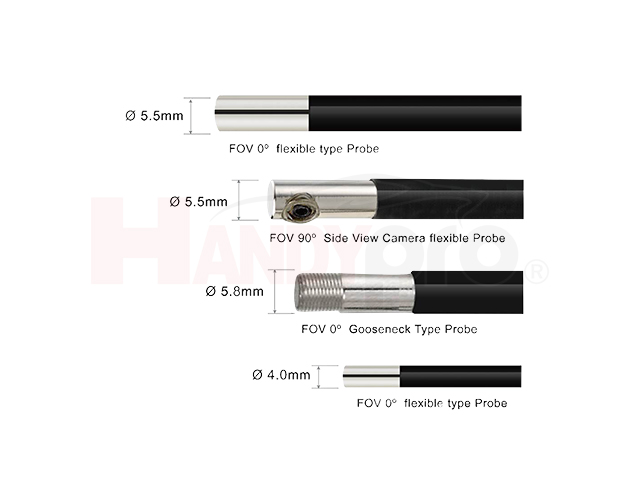

Size Tip(Insert Tube) Diameter:5.5mm/ 4.0mm(Optional)

Tube Length:1 Meter(upto 30 Meter)

Field of View(FOV): 54”/56”

Depth of View(DOV) 1.5cm to 5cm(OD 5.5mm)

Light Source: 4 LED(OD 5.5mm)

Probe Working Temperature: -20∘to 60∘C(OD5.5mm)

Ingress Protection: AVI(640x480)

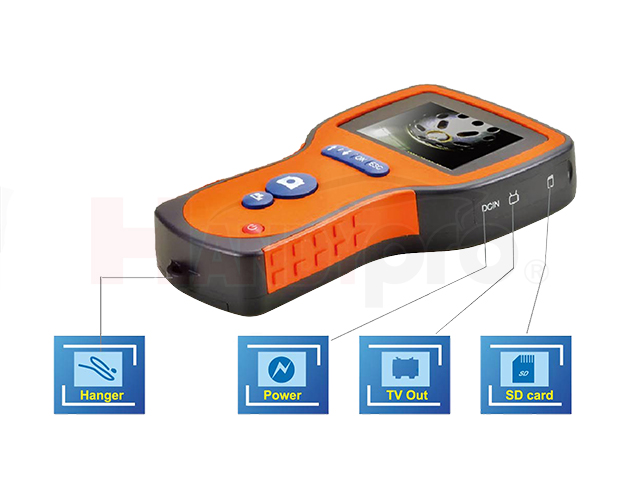

Display Unit: Power: DC 5V

Display:3.5”TFT LCD Monitor 320 x 240 Pixel

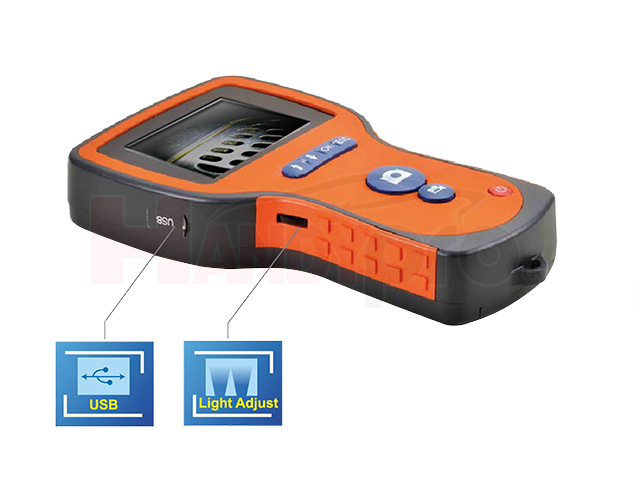

Interface: USB 1.1/2.1, AC out

Battery: Rechargeable Li-Polymer Battery

Power adapter: 100~240V AC in/ 5.5V DC out

Video Out Format: NTSC&PAL

Recoding Medium: 1GB SD card(upto 8GB, optional)

Compression Format:MPEG4

Still Image Storage Format: JPEG(640x480)

Video Recording Format:ASF(320x240)
Contents: FVS-800 Main Unit SEMI-RIGID UNIT with OD:5.8mm, L: 1M

Packing: Blow Mold Case

1/SET/CTN/4.3/5.3/KGS/0.9’
