Other Timing Tool
TG0182

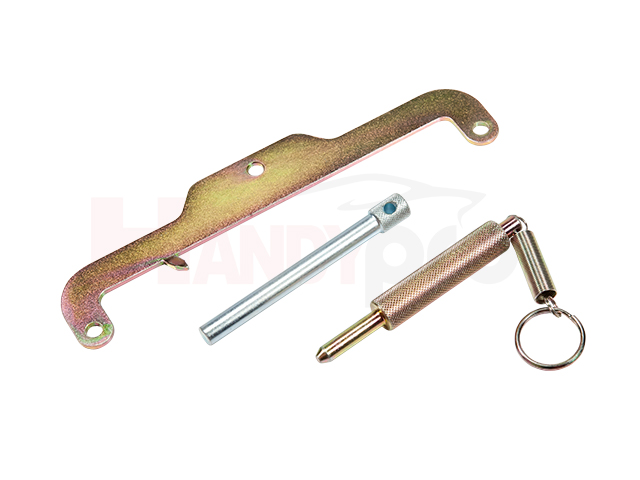

Diesel Engine Setting Kit
Specifications
Applications:
For vehicles without this type of sump pan, use the flywheel
TDC setting tool.
Secure the tool to the cell housing bent in towards the flywheel ting gear.
Align the TDC mark on the flywheel with pointer.
On vehicles from 1998 on the injection pump locking pin is required as part of the procedure.
With the TDC set up, pass the locking pin through the hole in the timing pump gear and locate it.
For vehicles without this type of sump pan, use the flywheel
TDC setting tool.
Secure the tool to the cell housing bent in towards the flywheel ting gear.
Align the TDC mark on the flywheel with pointer.
On vehicles from 1998 on the injection pump locking pin is required as part of the procedure.
With the TDC set up, pass the locking pin through the hole in the timing pump gear and locate it.
Material: common steel.
Packing: Double Blister
