Transmission and Clutch Tool
EN0176
S.A.E. Clutch Alignment Tool
Specifications
Faster, easier replacement of clutches.
Align clutch plates and pilot bearings accurately.
Shaft and bushings provide an accu-rate fit for eight pilot bearing sizes.
Two turned sizes (1" and 1-1/8") fit 90% of the clutch plates and cone handles the rest.

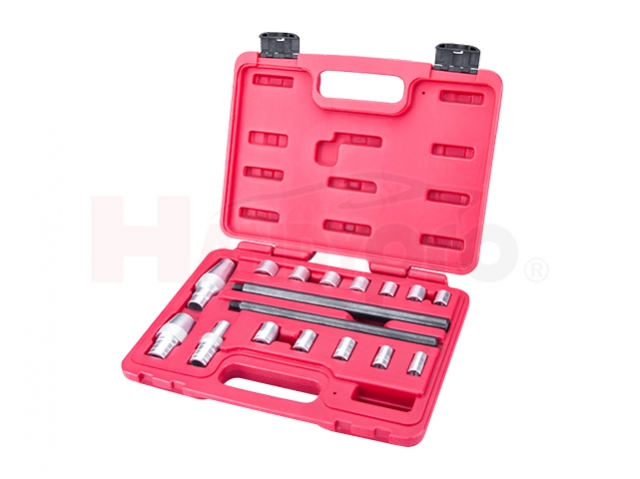

Metric Clutch Alignment Tool
For faster, easier replacement or repair of metric clutches.
Tool consists of the shaft, 10 pilot bushings and 2 plate alignment cones with graduated turned diameters for "automatic" fit of most metric clutch plates.
A tapered cone to fit all others is provided.
Align clutch plates and pilot bearings accurately.
Shaft and bushings provide an accu-rate fit for eight pilot bearing sizes.
Two turned sizes (1" and 1-1/8") fit 90% of the clutch plates and cone handles the rest.
Metric Clutch Alignment Tool
For faster, easier replacement or repair of metric clutches.
Tool consists of the shaft, 10 pilot bushings and 2 plate alignment cones with graduated turned diameters for "automatic" fit of most metric clutch plates.
A tapered cone to fit all others is provided.
