Diagnostic Service Tool
DT0127

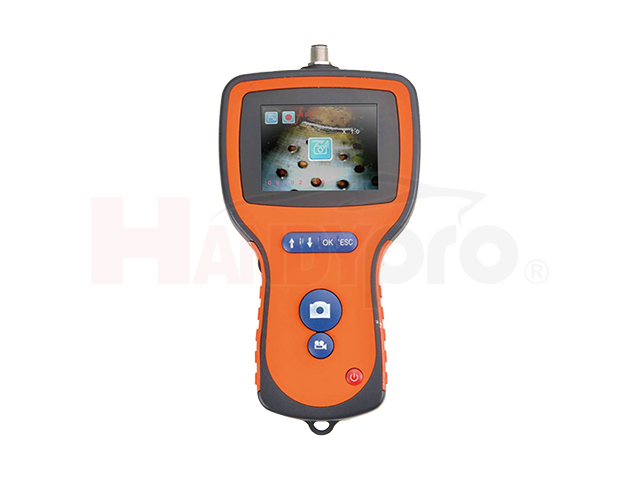

FVS Series Endoscope Set
Specifications
Feature: Insert Tube& Light Source:
Image Sensor: CMOS Image Sensor
Resolution(Dynamic Static):320(H)x 240(V)/640(H) x 480(V)

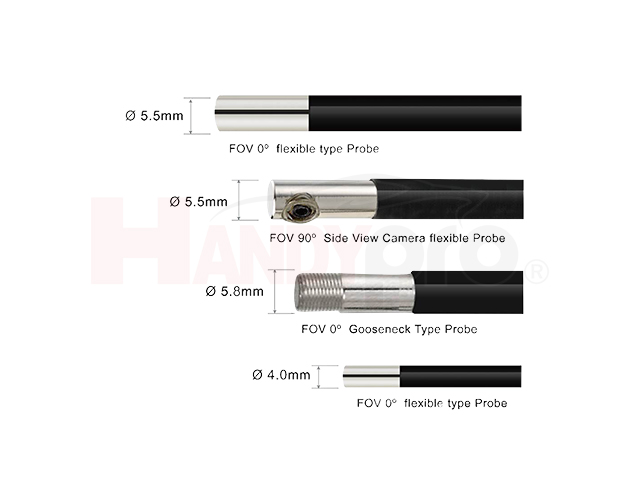

Size Tip(Insert Tube) Diameter:5.5mm/ 4.0mm(Optional)
Tube Length:1 Meter(upto 30 Meter)
Field of View(FOV): 54”/56”
Depth of View(DOV) 1.5cm to 5cm(OD 5.5mm)
Light Source: 4 LED(OD 5.5mm)
Probe Working Temperature: -20∘to 60∘C(OD5.5mm)
Ingress Protection: AVI(640x480)
Display Unit: Power: DC 5V
Display:3.5”TFT LCD Monitor 320 x 240 Pixel

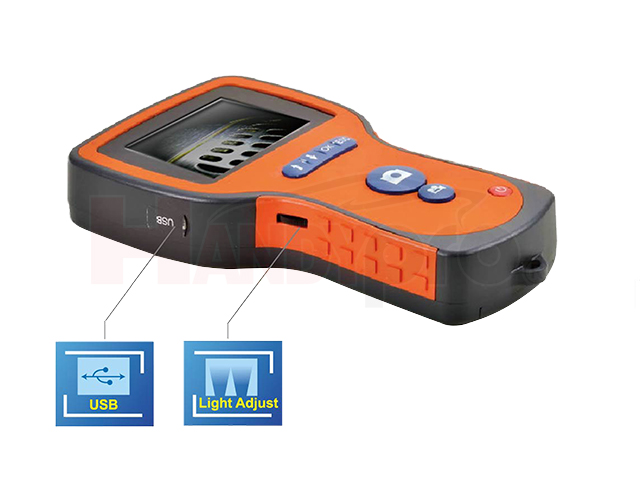

Interface: USB 1.1/2.1, AC out
Battery: Rechargeable Li-Polymer Battery
Power adapter: 100~240V AC in/ 5.5V DC out

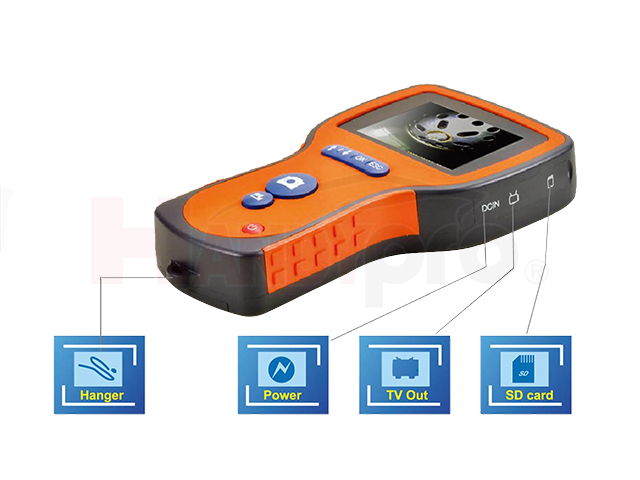

Video Out Format: NTSC&PAL
Recoding Medium: 1GB SD card(upto 8GB, optional)
Compression Format:MPEG4
Still Image Storage Format: JPEG(640x480)
Video Recording Format:ASF(320x240)
Image Sensor: CMOS Image Sensor
Resolution(Dynamic Static):320(H)x 240(V)/640(H) x 480(V)
Size Tip(Insert Tube) Diameter:5.5mm/ 4.0mm(Optional)
Tube Length:1 Meter(upto 30 Meter)
Field of View(FOV): 54”/56”
Depth of View(DOV) 1.5cm to 5cm(OD 5.5mm)
Light Source: 4 LED(OD 5.5mm)
Probe Working Temperature: -20∘to 60∘C(OD5.5mm)
Ingress Protection: AVI(640x480)
Display Unit: Power: DC 5V
Display:3.5”TFT LCD Monitor 320 x 240 Pixel
Interface: USB 1.1/2.1, AC out
Battery: Rechargeable Li-Polymer Battery
Power adapter: 100~240V AC in/ 5.5V DC out
Video Out Format: NTSC&PAL
Recoding Medium: 1GB SD card(upto 8GB, optional)
Compression Format:MPEG4
Still Image Storage Format: JPEG(640x480)
Video Recording Format:ASF(320x240)
Contents:
FVS-800 Main Unit Cable OD:3.9MM L:1M
FVS-800 Main Unit Cable OD:3.9MM L:1M
Packing: Blow Mold Case
1/SET/CTN/4.3/5.3/KGS/0.9'
1/SET/CTN/4.3/5.3/KGS/0.9'
